2009 Bajaj Pulsar 220 DTSi

2009 Bajaj Pulsar 220 DTSi is much more than just a non-fuel-injected version of the DTS-Fi. Visually, the bike has an all-black treatment with black forks, swingarm, alloys and engine paint. Other visual tit-bits are chiseled 3d graphics, a redesigned console background and revised clip-on handlebars.

2009 Bajaj Pulsar 220 DTSi changes are starker in the innards of the bike. The new engine shares the same dimensions as the 220 DTS-Fi, but now breathes through a 32mm venturi carburetor with an auto-choke feature. Power output has been pegged at 21.04PS @ 8500rpm, and though the torque remains the same at 19.12Nm, it now comes in at a higher 8000rpm, signaling the revvy nature of the motor with ample torque to go with it.

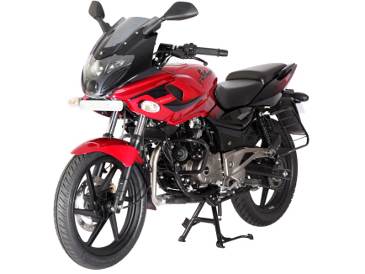

Pictures Bajaj Pulsar 220 DTSi

 2009 Bajaj Pulsar 220 DTSi Specifications

Engine
Type: Single Cylinder, 4 stroke-air cooled.
Bore(mm)xStroke(mm): 67×62.4
Displacement: 220cc
Valve per cylinder: 2
Fueling: Carburetor – UCAL UCD 32
Compression Ratio: 9.5:1
Max. Power (Ps@RPM): 21.04@8500
Max. Torque(NM@RPM): 19.12@7000
Starting: Electric

Transmission
Clutch: Wet multiplate
No.of gears: 5
Gear Shift Pattern: 1-down, 4-up
Primary Reduction: 3.47 (66/19)
Final Reduction: 2.571 (36/14)

Chassis
Type: Double cradle down tube
Suspension (front): Telescopic, 130mm
Suspension (rear): Nitrox, with 90mm travel
Front Brakes: Disc, 260mm
Rear Brakes: Disc, 230mm
Tyre (Front): 90/90X17? (Soft Compound, tubeless)
Tyre (Rear): 120/80X17? (Soft Compound, tubeless)
Fuel Tank Capacity: 15 litres, with 3.2 litres reserve (2.2 litres usable reserve)

Dimensions
Overall Length (mm): 2035
Overall Width(mm): 750
Overall Height(mm): 1165
Wheelbase(mm): 1350
Ground Clearance(mm): 165
Saddle Height(mm): 795
Kerb Weight(KG): 150

Electricals
Battery: 12V, 9Ah, Full DC
Head Lamp: Low – Projector Lamp, 55W
High – Ellipsoidal Lamp, 55W
Tail/ Stop Lamp: LED Type
Horn: DC, 2
